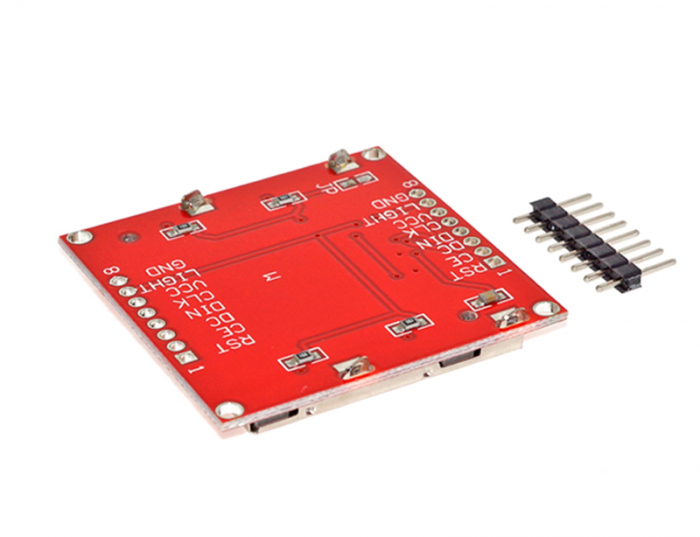

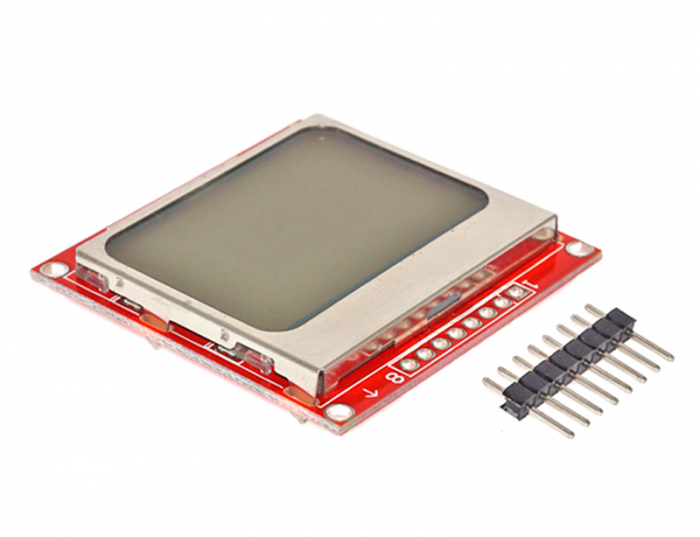

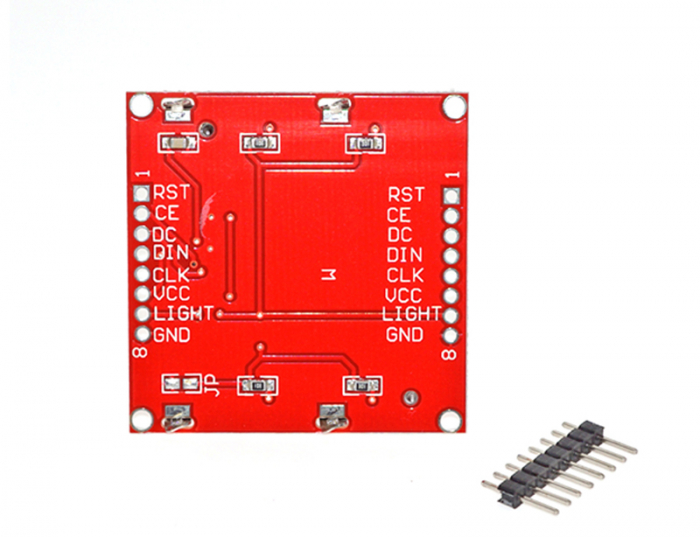

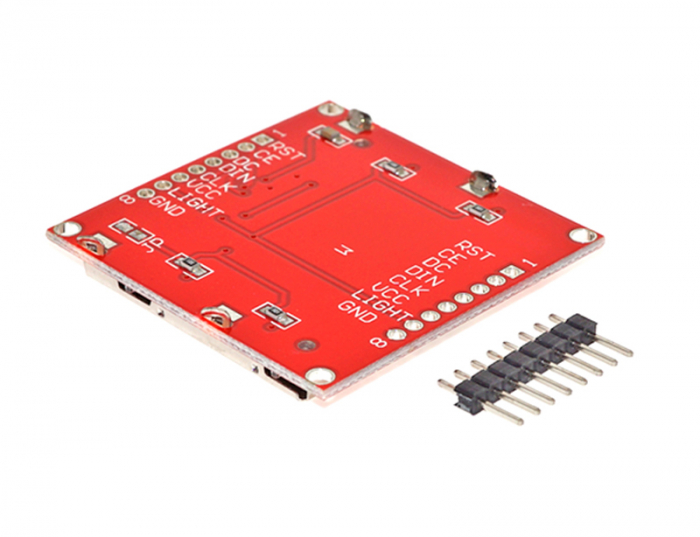

Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [1]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/original/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-798699.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [1]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [2]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/original/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-511868.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [2]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [3]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/original/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-375667.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [3]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [4]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/original/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-933013.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [4]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [5]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/original/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-947283.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [5]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [0]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/medium/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-798699.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [0]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [1]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/medium/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-511868.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [1]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [2]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/medium/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-375667.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [2]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [3]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/medium/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-933013.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [3]")
![Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [4]](https://gomagcdn.ro/domains/iqelectric.ro/files/product/medium/shield-lcd-84x48-tip-nokia-5110-cu-backlight-alb-oky4025-947283.jpg "Shield LCD 84x48 tip Nokia 5110 cu backlight alb OKY4025 [4]")
- Descriere
- Caracteristici
- Review-uri (0)
Descriere:
Shield-ul LCD 84x48 tip Nokia 5110 OKY4025 este un modul compact cu backlight alb, echipat cu controller PCD8544, destinat afisarii grafice si textului in proiecte embedded. Functioneaza la 3.3V si comunica prin interfata SPI, avand un consum foarte redus de doar 320uA, ceea ce il face potrivit pentru aplicatii portabile alimentate pe baterie. Rezolutia de 84x48 pixeli permite afisarea de text, simboluri sau imagini bitmap, fiind o alternativa eficienta fata de LCD-urile standard 16x2, in special in proiectele cu Arduino sau alte microcontrolere compatibile.
Specificatii:
Controller: PCD8544 (compatibil 5110)Rezolutie afisaj: 84 x 48 pixeli
Backlight: alb
Tensiune de alimentare: 3.3V
Curent consumat: 320 uA
Interfata comunicatie: SPI
Nivel dificultate: Mediu
Tip produs: PCB
