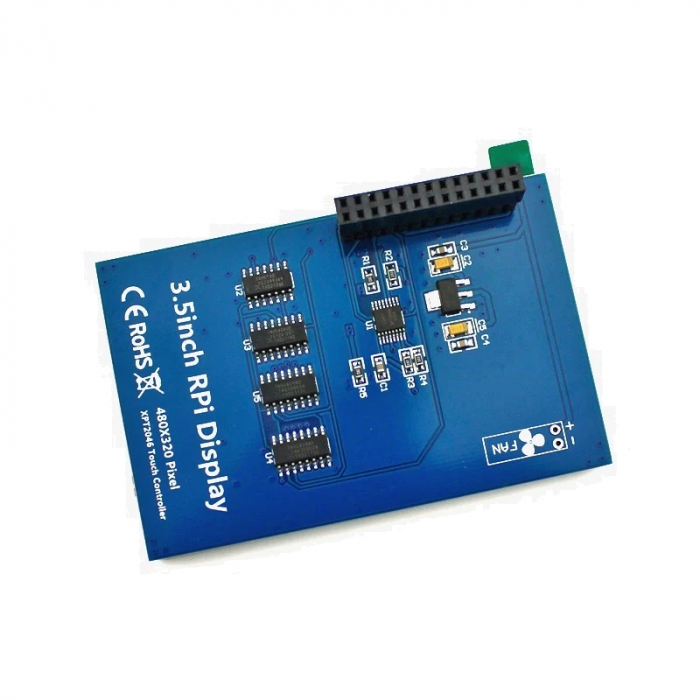

Configuratie pin
Pin No. |
Name |
Description |
1, 17 |
3.3V |
Intrare de alimentare de 3,3 V |
2, 4 |
5V |
Intrare de alimentare 5V |
3, 5, 7, 8, 10, 12, 13, 15, 16 |
NC |
Nu este conectat |
6, 9, 14, 20, 25 |
GND |
Impamantare |
11 |
TP_IRQ |
Intreruperea panoului tactil, nivel scazut in timp ce panoul tactil detecteaza atingerea |
18 |
LCD_RS |
Selectia registrului de instructiuni/date |
19 |
TP_SI |
Introducerea datelor SPI de pe panoul tactil |
21 |
TP_SO |
Iesire de date SPI a panoului tactil |
22 |
RST |
Reset |
23 |
TP_SCK |
Ceasul SPI al panoului tactil |
24 |
LCD_CS |
Selectare cip LCD, activ scazut |
26 |
TP_CS |
Selectare cip pentru panoul tactil, activ scazut |
Nivel dificultate: Mediu
Tip produs: PCB
